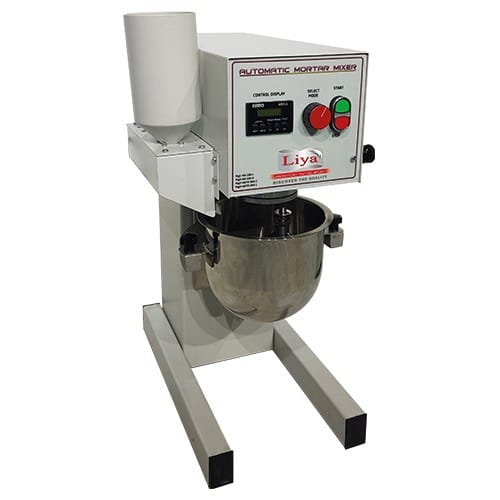

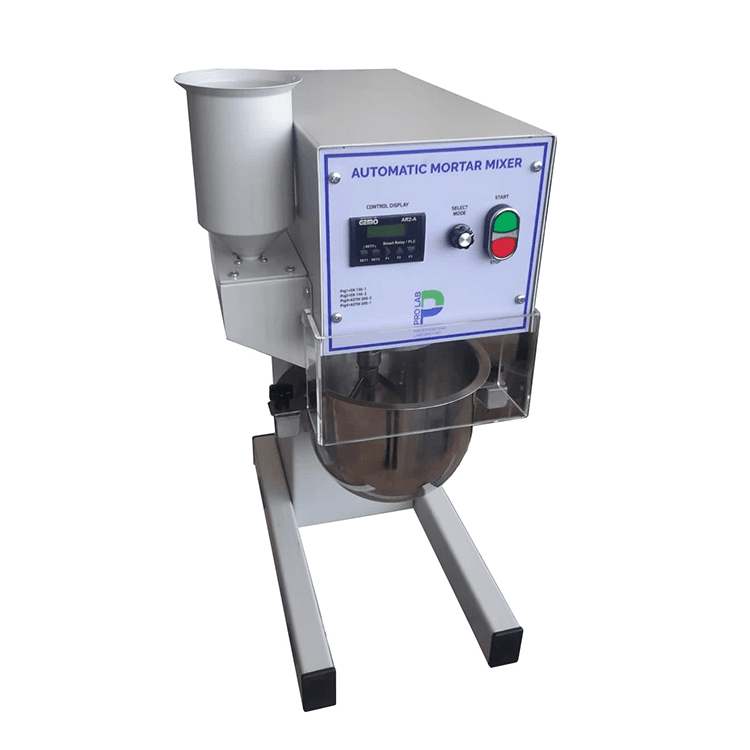

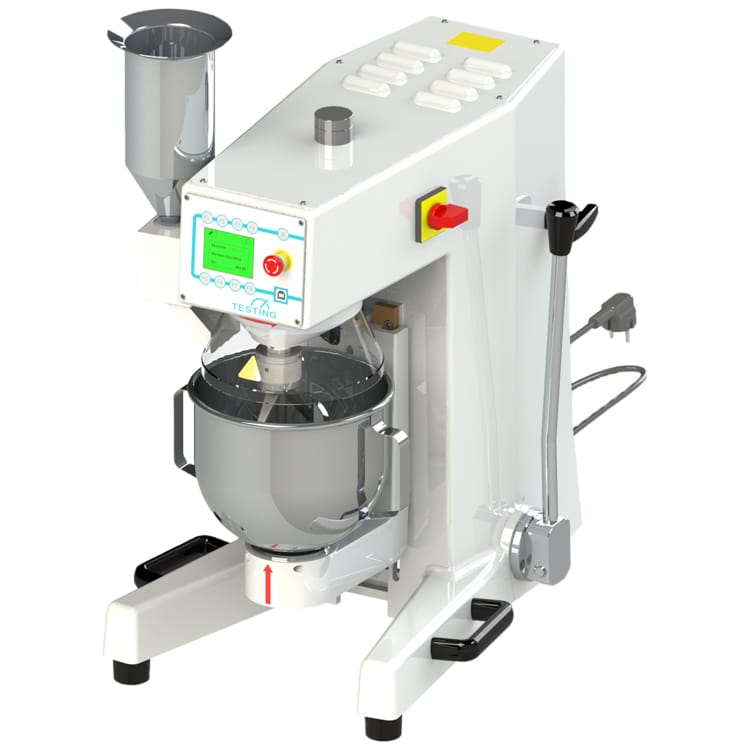

Automatic Cement Mixer

Automatic Cement Mixer (Mortar)

The Automatic Cement Mixer is specifically designed to prepare homogeneous cement mortar mixtures for strength testing in accordance with standards like EN 196-1, ASTM C305, and BS 3892.

With programmable mixing cycles, dual-speed motors, and standardized paddles and bowls, these mixers deliver consistent and repeatable results—ensuring high-quality test specimens for compressive and flexural strength evaluation.

Depending on the model and brand, features may include:

• Preset or customizable mixing programs

• Stainless steel mixing bowl (5 L) and paddle

• Automatic sand feeding (optional)

• Touchscreen or button-based control

• Emergency stop and safety bowl cover

This mixer is ideal for cement and mortar laboratories aiming for accurate, efficient, and hands-free sample preparation.

Choosing the right cement mixer? Here’s a side-by-side comparison of the leading models used for mortar preparation in strength testing labs.

Key Features Comparison – Automatic Cement (Mortar) Mixer

Feature
Mixing Capacity	5 L bowl	5 L bowl	5 L bowl
Standards Compliance	EN 196-1, ASTM C305	EN 196-1, ASTM C305	EN 196-1, ASTM C305
Speed Settings	30/13 to 380/165 rpm (2-speed)	140 / 285 rpm	140 / 285 rpm
Control System	Digital programmable control panel	Touchscreen control	Button panel with pre-set cycles
Mixing Programs	Automatic & customizable cycles	Programmable programs	Preset programs with auto/manual modes
Sand Feeding	Manual (automatic optional)	Optional automatic sand feeding	Optional automatic sand hopper
Safety Features	Bowl protection cover, emergency stop	Transparent safety cover, emergency stop	Safety bowl lid, motor lock
Bowl Material	Stainless steel	Stainless steel	Stainless steel
Dimensions / Weight	350 × 500 × 750 mm / ~55 kg	650 × 450 × 700 mm / ~75 kg	Approx. 600 × 750 × 850 mm / 62 kg
Power Supply	220 V / 50–60 Hz	230 V / 50–60 Hz	230 V / 50–60 Hz
