Automatic Soil Compactor

The Automatic Soil Compactor is engineered to compact soil specimens automatically in accordance with international standards like ASTM D698, D1557, BS 1377, and EN 13286-2. It ensures consistent compaction for Proctor and CBR test molds by delivering controlled, repeatable blows through a falling rammer.

Designed to reduce operator involvement, increase safety, and improve repeatability, these compactors allow users to:

Set the number of blows per layer
Choose drop height and rammer weight
Match different standards via programmable settings

Advanced models include mold rotation and rammer position adjustment to ensure uniform compaction and surface coverage.

Here’s a head-to-head comparison of two reliable soil compaction machines, built to deliver precision and repeatability for CBR and Proctor testing.

Key Features Comparison – Automatic Soil Compactor

Feature
Standards Compliance	ASTM D698, D1557, EN 13286-2	ASTM D698, D1557, BS 1377, EN 13286-2, AASHTO T193
Drop Height Options	300 mm, 450 mm (adjustable)	300 mm, 450 mm
Rammer Weight	2.5 kg or 4.5 kg (adjustable)	2.5 kg or 4.5 kg
Mold Compatibility	4″ and 6″ CBR/Proctor molds	4″ and 6″ CBR molds
Compaction Control	Programmable digital counter (blows per layer)	Digital counter (user-defined cycles)
Mold Rotation	Circular, automated	Circular automated rotation

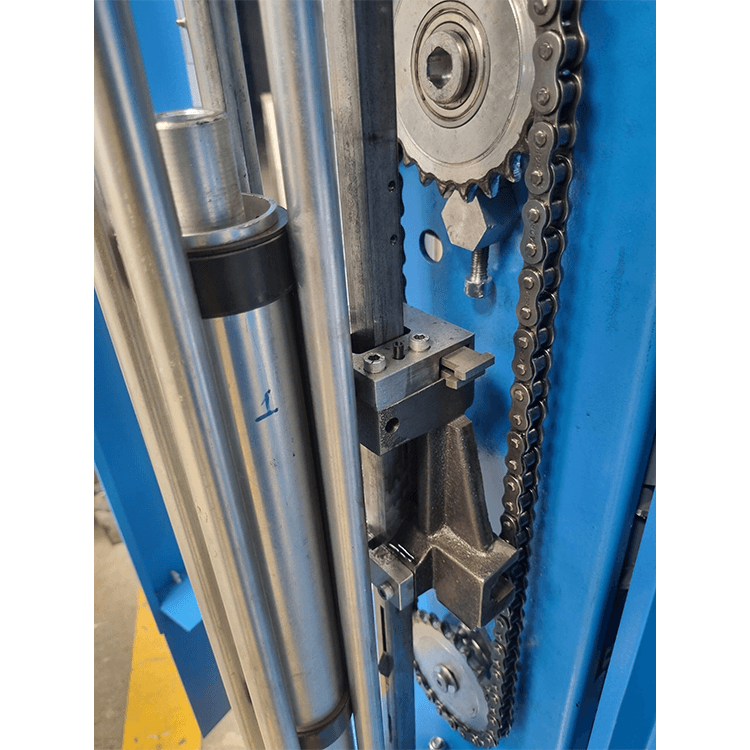

Rammer Path	Dual radius path for uniform compaction	Dual radius arm movement
Safety Features	Emergency stop, protective frame	Emergency stop, safety cover

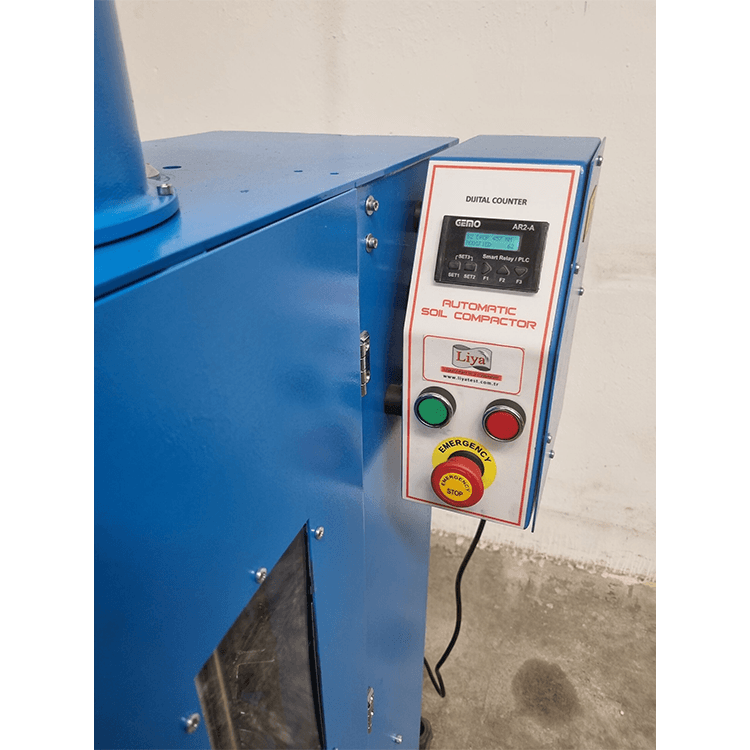

Display Interface	LCD panel with intuitive menu	LED screen with push button controls
Power Supply	220 V / 50–60 Hz	230 V / 50–60 Hz
