Flexural and Compression Testing Machine
Flexural and Compression Testing Machine

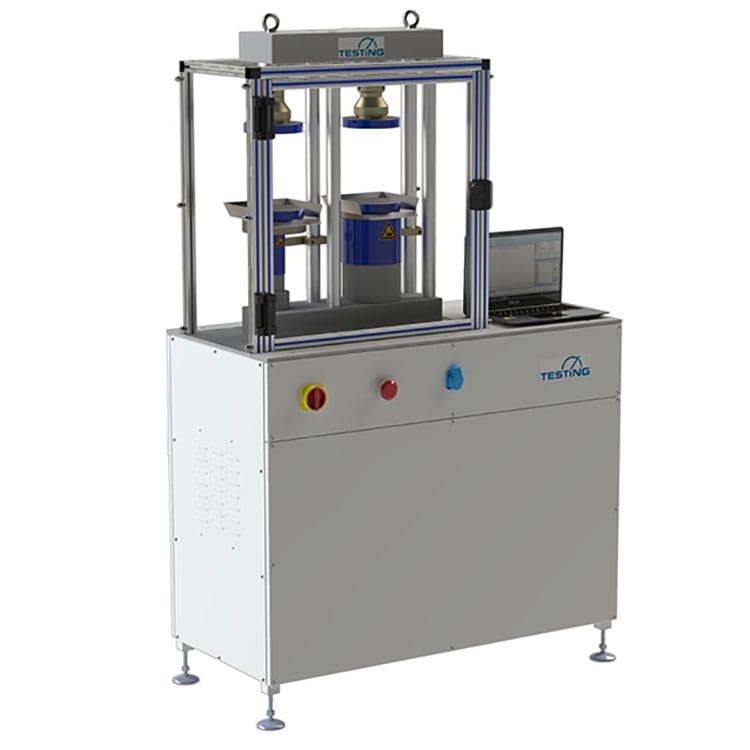

The Flexural and Compression Testing Machine is a standalone, high-capacity system designed for precision flexural testing on a wide range of concrete specimens. With a robust 300 kN load frame, advanced hydraulic control, and intuitive touch-screen interface, the machine is built for performance, repeatability, and operator safety.
Ideal for use in concrete quality control labs and structural research facilities, this machine allows accurate 3-point and 4-point bending tests on beams, slabs, paving stones, and other concrete elements.
Thanks to its closed-loop servo-hydraulic system, the SV-i20 automatically manages test cycles from start to finish, ensuring consistent loading rates, real-time data collection, and reliable results that comply with international standards.
Key Features Flexural and Compression Testing Machine
Feature | Specification |
|---|---|
| Maximum Load Capacity | 300 kN |
| System Type | Servo-hydraulic, closed-loop control |
| Control Interface | Integrated touchscreen with real-time load & displacement display |
| Accuracy Class | Class 1 (according to EN ISO 7500-1) |
| Test Compatibility | 3-point and 4-point flexural testing |
| Safety Features | Built-in enclosure with interlock door system |
| Data Output | USB and Ethernet connectivity |
| Automation | Fully automatic test sequence with programmable parameters |
| Software Integration | PC connection optional for extended control and reporting |
| Application Range | Concrete beams, slabs, paving stones, and kerbs |
| Standards Compliance | EN ISO 7500-1, CE-certified |
