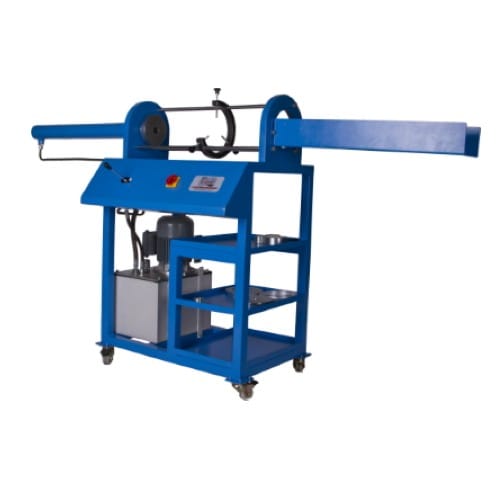

HYDRAULIC HORIZONTAL SAMPLE EXTRUDER
HYDRAULIC HORIZONTAL SAMPLE EXTRUDER
The Hydraulic Horizontal Sample Extruder is designed to remove soil samples from cylindrical molds with precision and minimal disturbance. This device is essential in geotechnical laboratories for preparing undisturbed soil specimens for further analysis, including triaxial, unconfined compression, or consolidation tests.
Using a horizontal hydraulic piston mechanism, the sample is pushed smoothly and uniformly, preserving its natural structure. The machine is compatible with standard mold sizes and offers a safe, efficient alternative to manual extrusion methods.
Key Specifications of Hydraulic Horizontal Sample Extruder
Feature | Specification |
|---|---|
| Extrusion Method | Hydraulic (horizontal piston) |
| Compatible Molds | Ø 38 mm, 50 mm, 100 mm (others via adapters) |
| Maximum Stroke | 650 mm |
| Operation | Manual hydraulic lever or motorized (optional) |
| Construction | Rigid steel body with alignment guide |
| Applications | Triaxial, UCS, consolidation test sample prep |
| External Dimensions | 65x175x75 cm |
